$399.00

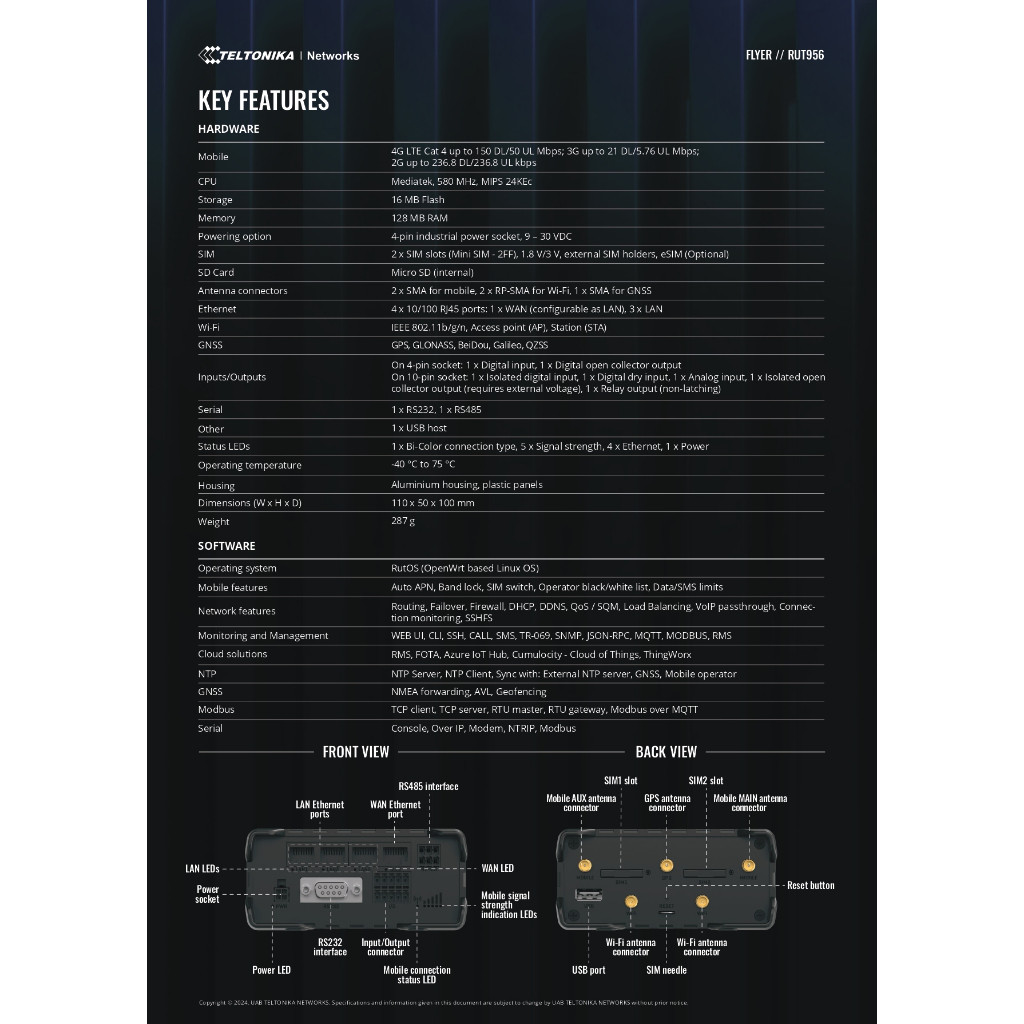

Key Features:
Mobile Connectivity:
4G LTE (Cat 4): Download speed up to 150 Mbps, Upload speed up to 50 Mbps
3G: Download speed up to 21 Mbps, Upload speed up to 5.76 Mbps
2G: Download and Upload speed up to 236.8 kbps
Hardware:
CPU: Mediatek, 580 MHz, MIPS 24KEc
Storage: 16 MB Flash
Memory: 128 MB RAM
Powering Option: 4-pin industrial power socket, 9 ? 30 VDC
SIM Slots: 2 x Mini SIM (2FF), 1.8 V/3 V, external SIM holders, eSIM (optional)
SD Card: Micro SD (internal)
Antenna Connectors:
2 x SMA for mobile
2 x RP-SMA for Wi-Fi
1 x SMA for GNSS
Ethernet: 4 x 10/100 RJ45 ports (1 x WAN, 3 x LAN)
Wi-Fi: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs/Outputs:
4-pin Socket: 1 x Digital input, 1 x Digital open collector output
10-pin Socket: 1 x Isolated digital input, 1 x Digital dry input, 1 x Analog input, 1 x Isolated open collector output (external voltage required), 1 x Relay output (non-latching)
Serial Ports: 1 x RS232, 1 x RS485
Other: 1 x USB host
Status LEDs:
1 x Bi-Color connection type
5 x Signal strength
4 x Ethernet
1 x Power
Environmental:
Operating Temperature: -40?C to 75?C
Housing: Aluminium housing, plastic panels
Physical:
Dimensions: 110 x 50 x 100 mm
Weight: 287 g
