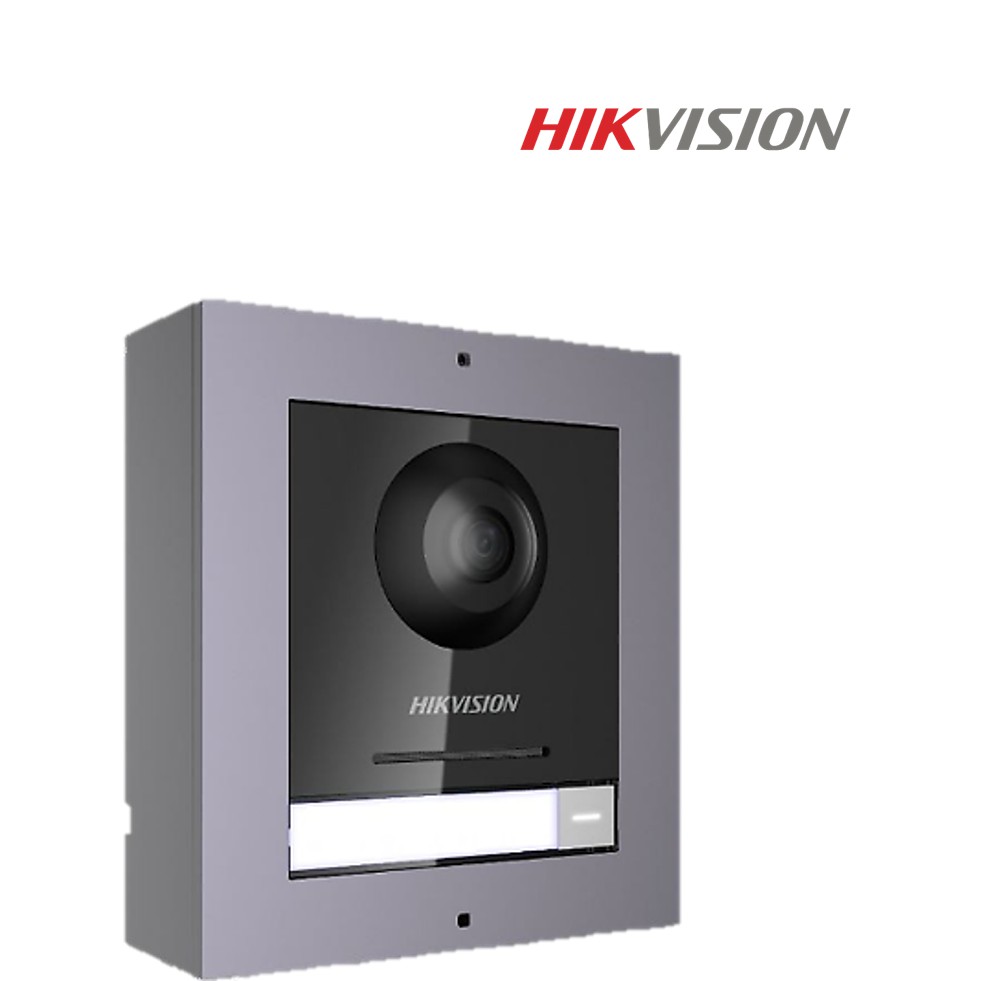

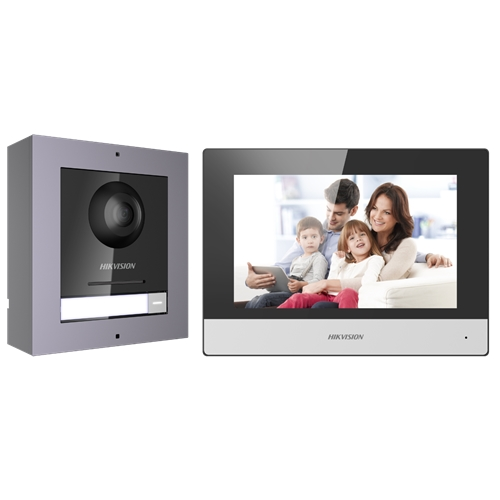

Hikvision IP Video Intercom Kit Set + 4 Port PoE Switch + 16GB TF Card [Model: DS-KIS602]

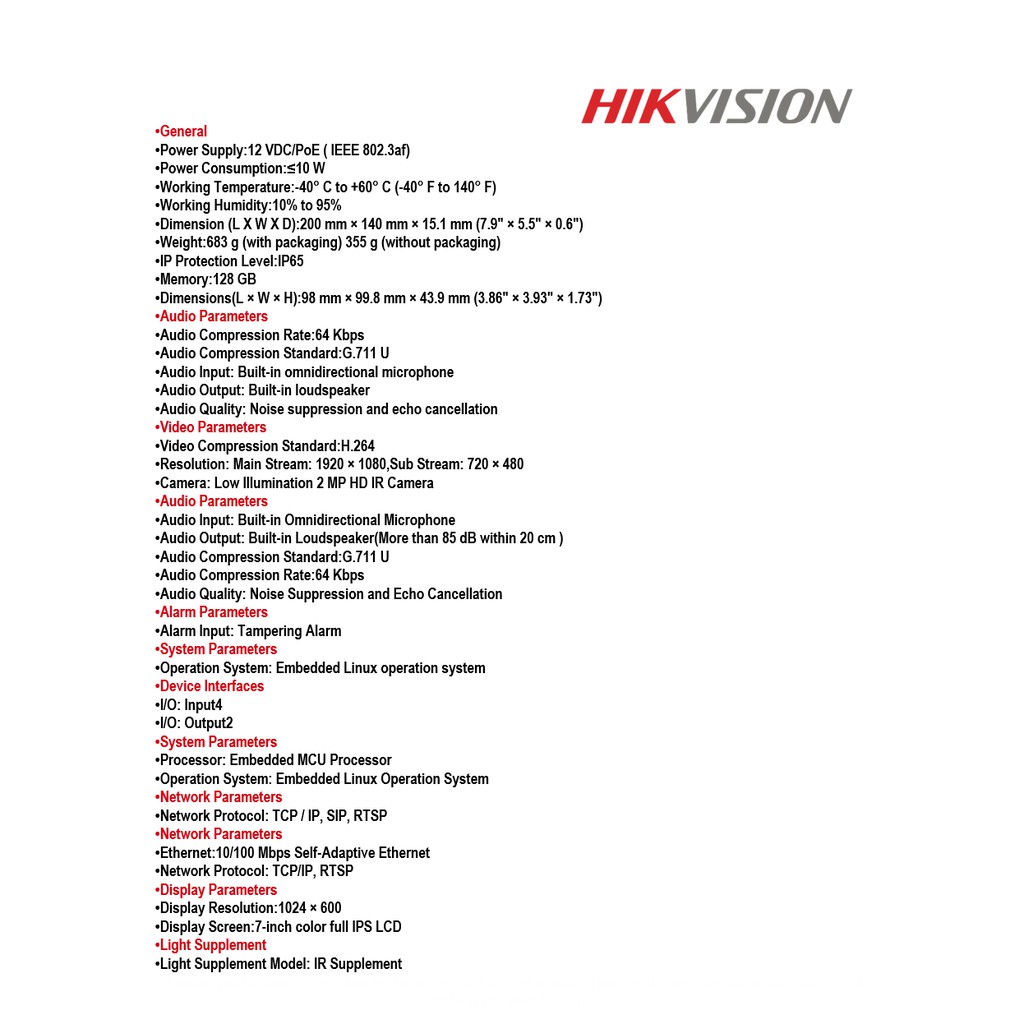

General

Power Supply:12 VDC/PoE ( IEEE 802.3af)

Power Consumption:=10 W

Working Temperature:-40? C to +60? C (-40? F to 140? F)

Working Humidity:10% to 95%

Dimension (L X W X D):200 mm ? 140 mm ? 15.1 mm (7.9″ ? 5.5″ ? 0.6″)

Weight:683 g (with packaging) 355 g (without packaging)

IP Protection Level:IP65

Memory:128 GB

Dimensions(L ? W ? H):98 mm ? 99.8 mm ? 43.9 mm (3.86″ ? 3.93″ ? 1.73″)

Audio Parameters

Audio Compression Rate:64 Kbps

Audio Compression Standard:G.711 U

Audio Input: Built-in omnidirectional microphone

Audio Output: Built-in loudspeaker

Audio Quality: Noise suppression and echo cancellation

Video Parameters

Video Compression Standard:H.264

Resolution: Main Stream: 1920 ? 1080,Sub Stream: 720 ? 480

Camera: Low Illumination 2 MP HD IR Camera

Audio Parameters

Audio Input: Built-in Omnidirectional Microphone

Audio Output: Built-in Loudspeaker(More than 85 dB within 20 cm )

Audio Compression Standard:G.711 U

Audio Compression Rate:64 Kbps

Audio Quality: Noise Suppression and Echo Cancellation

Alarm Parameters

Alarm Input: Tampering Alarm

System Parameters

Operation System: Embedded Linux operation system

Device Interfaces

I/O: Input4

I/O: Output2

System Parameters

Processor: Embedded MCU Processor

Operation System: Embedded Linux Operation System

Network Parameters

Network Protocol: TCP / IP, SIP, RTSP

Network Parameters

Ethernet:10/100 Mbps Self-Adaptive Ethernet

Network Protocol: TCP/IP, RTSP

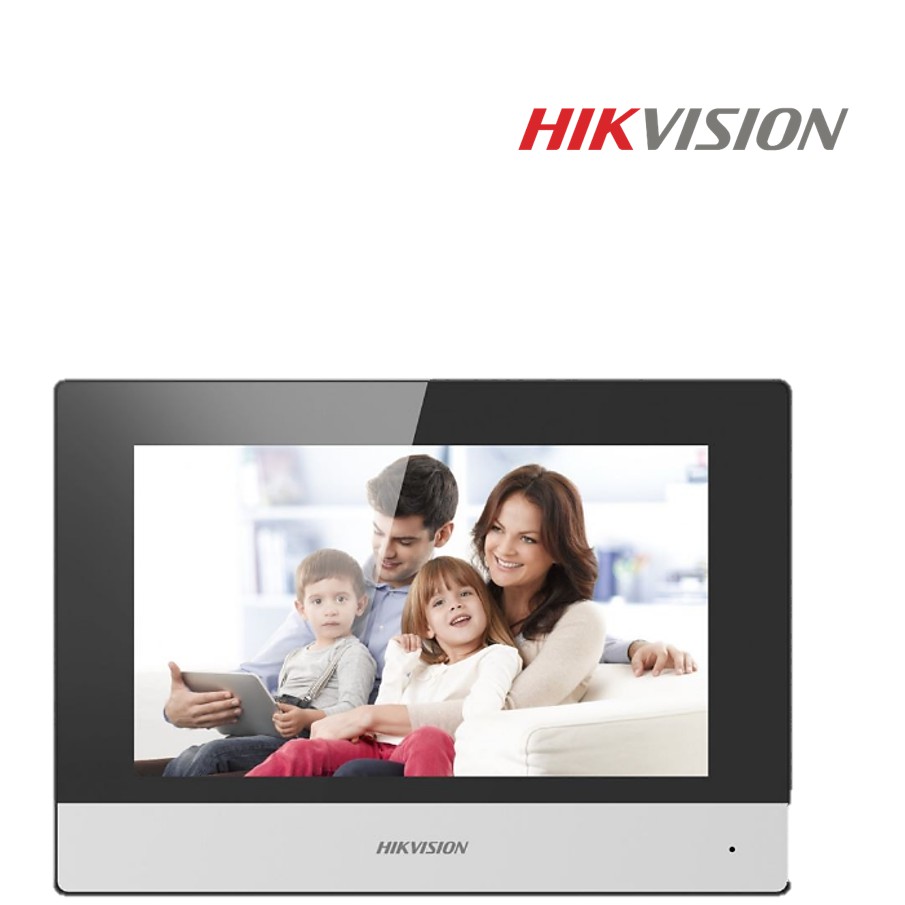

Display Parameters

Display Resolution:1024 ? 600

Display Screen:7-inch color full IPS LCD

Light Supplement

Light Supplement Model: IR Supplement
